南京林业大学学报(自然科学版) ›› 2025, Vol. 49 ›› Issue (3): 197-204.doi: 10.12302/j.issn.1000-2006.202309022

• 研究论文 • 上一篇    下一篇

榆毛胸萤叶甲成虫触角感器的性二型现象

陶萌萌(), 孟昭军*(), 严善春, 吕金言, 张春文, 叶懿, 吴成丹

  1. 东北林业大学林学院,森林生态系统可持续经营教育部重点实验室,黑龙江 哈尔滨 150040
  • 收稿日期:2023-09-15 接受日期:2024-12-22 出版日期:2025-05-30 发布日期:2025-05-27
  • 通讯作者: *孟昭军(mengzj2018@nefu.edu.cn),副教授。
  • 作者简介:

    陶萌萌(3070365731@qq.com)。

  • 基金资助:
    2024黑龙江省自然科学基金联合基金培育项目(PL2024D001)

Sex dimorphism of the adults Xanthogaleruca aenescens antennal sensilla

TAO Mengmeng(), MENG Zhaojun*(), YAN Shanchun, LYU Jinyan, ZHANG Chunwen, YE Yi, WU Chengdan

  1. Key Laboratory of Sustainable Forest Ecosystem Management-Ministry of Education, Northeast Forestry University, Harbin 150040, China
  • Received:2023-09-15 Accepted:2024-12-22 Online:2025-05-30 Published:2025-05-27

摘要:

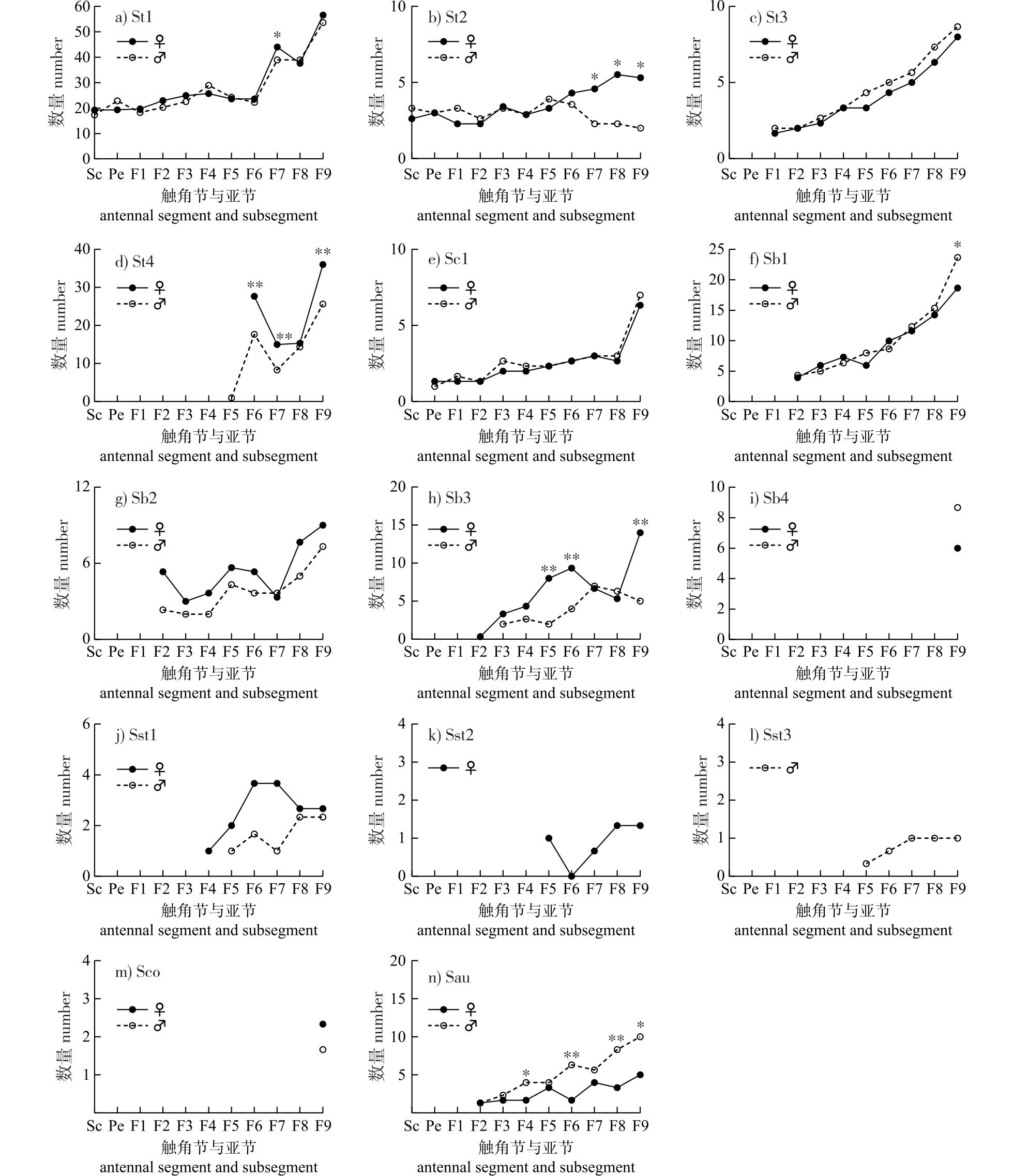

【目的】通过对榆毛胸萤叶甲(Xanthogaleruca aenescens)成虫触角感器的超微结构观察,确定雌、雄成虫触角感器的类型、分布、数量及差异,为叶甲科昆虫的遗传进化、形态分类及寡食性昆虫对寄主挥发物的定位机理研究提供参考。【方法】将榆毛胸萤叶甲雌、雄成虫触角清洗并自然干燥,喷金镀膜,应用扫描电子显微镜(SEM)观察雌、雄成虫触角及触角感器的形态特征,鉴定其触角感器类型。通过独立样本t检验比较不同性别成虫触角长度,同种性别成虫触角感器的长度、基部直径和数量的差异,并观察感器在触角上的分布位置。【结果】榆毛胸萤叶甲成虫触角呈线状,由柄节、梗节、9节鞭亚节组成,雄虫触角长度为(4 558.01±104.15)μm,雌虫触角长度为(4 488.75±224.33)μm,雄虫触角略长于雌虫,但差异不显著。雌、雄成虫触角均有8类感器:毛形感器(St)、刺形感器(Sc)、锥形感器(Sb)、栓锥形感器(Sst)、Böhm氏鬃毛(Bb)、芽胞形感器(Sg)、腔锥形感器(Sco)、耳形感器(Sau),其中毛形感器和锥形感器各有4个亚型,刺形感器有2个亚型,栓锥形感器有3个亚型;雌虫触角鞭节独具栓锥形感器2,雄虫独具栓锥形感器3;毛形感器分布数量最多,其次是锥形感器,腔锥形感器最少;毛形感器4、锥形感器1、3及耳形感器表面均具有微孔,属于嗅觉感器。雌虫触角感器总数极显著多于雄虫(P<0.01),其中雌虫的毛形感器2、锥形感器2、栓锥形感器1的数量显著多于雄虫的(P<0.05),毛形感器4和锥形感器3的数量极显著多于雄虫的(P < 0.01),耳形感器的数量极显著少于雄虫的(P<0.01),其他感器数量与雄虫无显著差异。雌、雄虫触角鞭亚节F2—F8的端部均有向内凹陷的感器密集区,末节F9中部具有凹陷的感器密集区,且从触角基部到端部,感器类型和数量呈上升趋势。雄虫触角鞭节(F1—F8)腹侧面具有表皮凹陷较为密集的无感器区域,雌虫则无。【结论】榆毛胸萤叶甲雌、雄成虫触角感器种类一致,但雌、雄成虫触角感器的亚型、大小、数量及分布具性二型现象,雌雄虫栓锥形感器存在不同亚型,不同感器大小存在差异,雄虫触角感器数量极显著少于雌虫。

关键词: 榆毛胸萤叶甲, 触角感器, 扫描电镜, 性二型, 触角形态, 超微结构

Abstract:

【Objective】This study aimed to identify the types, distribution, quantity, and sexual dimorphism of antennal sensilla in Xanthogaleruca aenescens through ultrastructural observation. The findings provide a basis for understanding the genetic evolution, morphological classification, and the role of olfactory sensilla in host volatile detection in leaf beetles.【Method】The antennae of adult female and male X. aenescens were cleaned, air-dried, and gold-coated for scanning electron microscopy (SEM). SEM was used to observe and photograph the morphological characteristics of the antennae and sensilla of both sexes, as well as to identify the types of sensilla present. Independent sample t-tests were conducted to compare differences in antennal length, sensilla length, base diameter, and the number of sensilla between the sexes, and the distribution of sensilla across the antennae was also examined.【Result】The antennae of X. aenescens were linear and consist of the scape, pedicel, and nine flagellar subsegments. The average length of male antennae was (4 558.01 ± 104.15) μm, while that of females was (4 488.75 ± 224.33) μm. Males have slightly longer antennae than females, although this difference was not statistically significant. Both males and females possessed eight types of antennal sensilla: sensilla trichodea (St), sensilla chaetica (Sc), sensilla basiconica (Sb), sensilla styloconica (Sst), Böhm bristles (Bb), sensilla gemmiformium (Sg), sensilla coeloconica (Sco), and sensilla auricillica (Sau). St and Sb each have four subtypes, Sc has two subtypes, and Sst has three subtypes. The female antennal flagellum has Sst 2, while the male flagellum contains Sst 3. The most abundant sensilla are St, followed by Sb, while Sco is the least common. St 4, Sb 1, Sb 3, and Sau exhibit micropores on their surfaces, indicating their role as olfactory sensilla. The total number of antennal sensilla in females was significantly greater than in males (P < 0.01). Specifically, the numbers of St 2, Sb 2, and Sst 1 were significantly higher in females (P < 0.05). St 4 and Sb 3 is significantly higher in females than in males (P < 0.01), while Sau was significantly fewer in females compared to males (P < 0.01). No significant differences were observed in the number of other sensilla. In both sexes, the tips of antennal subsegments F2 to F8 had inwardly concave areas with a high density of sensilla, and a similar concave area was present at the middle of the terminal segment F9. The density and number of sensilla increased from the base to the tip of the antenna. Additionally, the ventral surface of the male antennal flagellum (F1 to F8) exhibited a more densely packed area of epidermal depressions, a feature absent in females.【Conclusion】Both female and male X. aenescens have the same types of antennal sensilla, but there are clear sexual dimorphisms in sensilla subtypes, quantity, and distribution. Different subtypes of Sst were observed in males and females, with variations in the size of sensilla between the sexes. The total number of sensilla in males was significantly lower than in females. The specific roles of these sensilla in environmental perception, host detection, and mating behaviors should be further explored using transmission electron microscopy, electrophysiology, and other advanced techniques.

Key words: Xanthogaleruca aenescens, antennal sensilla, scanning electron microscopy, sex dimorphism, antennal morphology, ultrastructure

中图分类号:
